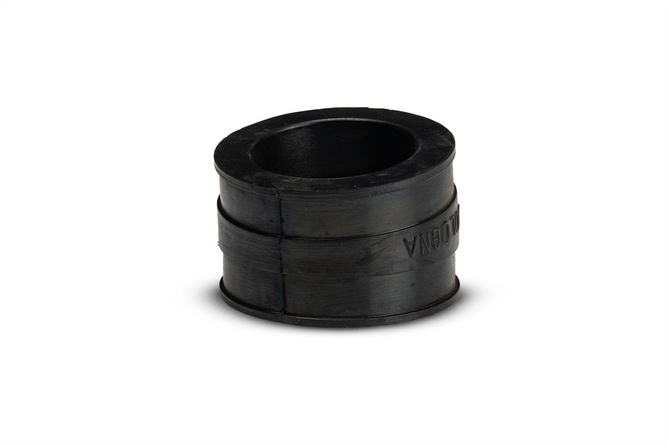

Intake sleeve for Dellorto PHBE / PHF / VHSB
Malossi connecting rubber for carburetors with 40mm / 44mm connection width. Allows flexible mounting on a metal intake manifold / intake pipe.
Malossi carburetor rubber dimensions
- Carburetor side: 44mm (2 beads)
- Engine side: 40mm (without bead)
- Passage: 32mm
- Height: 36mm
- Slightly angled approx. 8°
Suitable for carburetors with 44mm connection
- Dellorto PHF 30-36mm
- Dellorto PHBE 30-38mm
- Dellorto VHSB 34-39mm
- Mikuni TM (X) 38mm
- Keihin PJ 36-38mm
Note: The connection size is measured on the carburetor. Rubber mounts are often slightly smaller, as the rubber expands during installation.
Intake manifold rubber
The intake rubber is a relatively simple product, but nevertheless very important for the function of the intake and carburetor. It must seal 100% to ensure optimum engine performance.
It connects the metal intake manifold to the carburetor, in carburetors with intake rubber assembly. On 4-stroke engines, the intake manifold is often just a simple intake sleeve; on 2-stroke engines, the intake manifold itself is often flexible so that the carburetor can be attached directly to it.
In some cases, the rubber flange serves as a kind of adapter to change the type of mounting and allow the use of a different type of carburetor (e.g. Peugeot Speedfight).
| Intake Rubber Boot Malossi 40/44mm PHBE / PHF angled | |
|---|---|
| Article no. | M131017 |
| Weight | 0,07 kg |
| Brand | Malossi |
| Product type | Intake rubber |
