Cylinder Kit TPR Factory FL100 AM6
incl. tax, plus shipping
Description

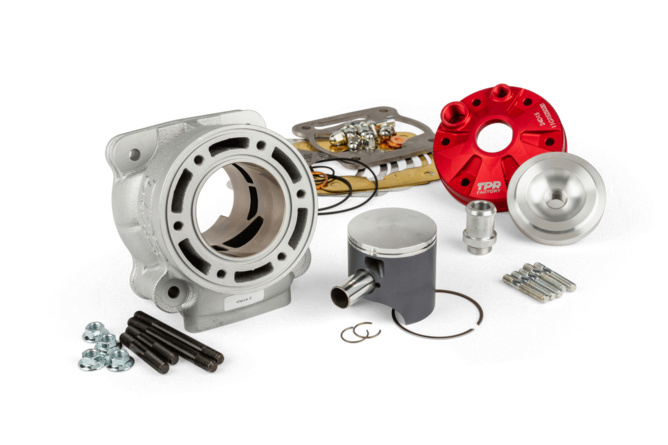

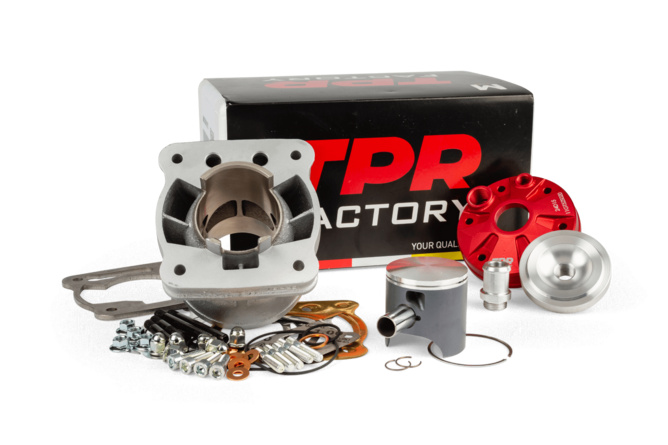

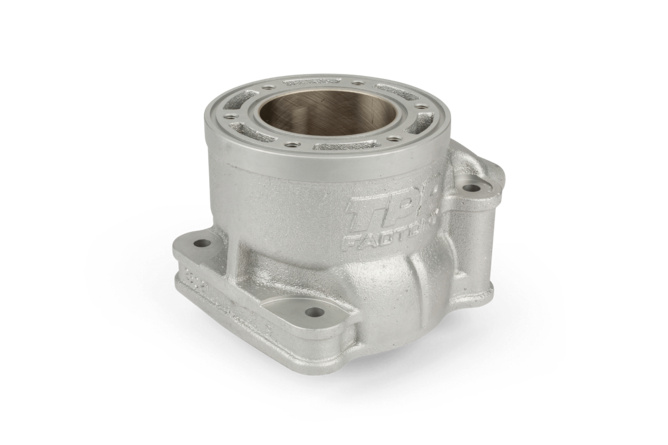

TOP PERFORMANCES 100cc FL cylinder kit for MINARELLI AM6
The tuning division TPR Factory of Top Performances has put in extensive development work to present a high-performance Big Bore Racing cylinder with a massive 100cc displacement for various 50cc two-wheelers.
The brand new TPR 100cc Flanged Mount Kit for Minarelli AM6 is designed for maximum performance. Utilizing cutting-edge 2-stroke racing technology, including a newly engineered high-tech layout, this cylinder delivers an exceptional increase in performance.

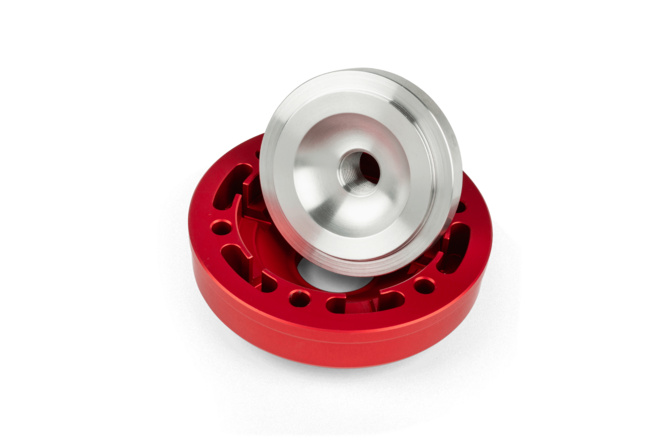

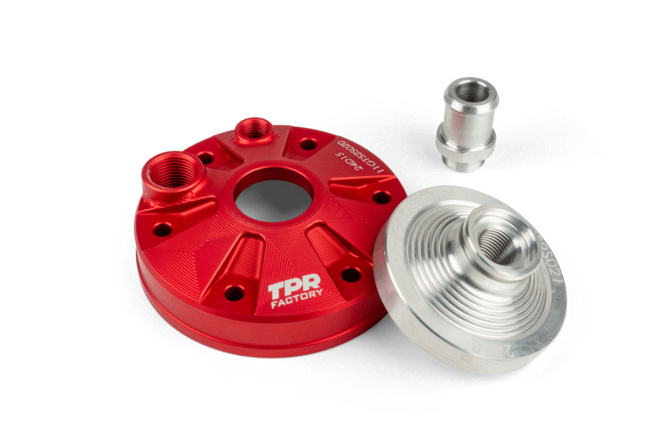

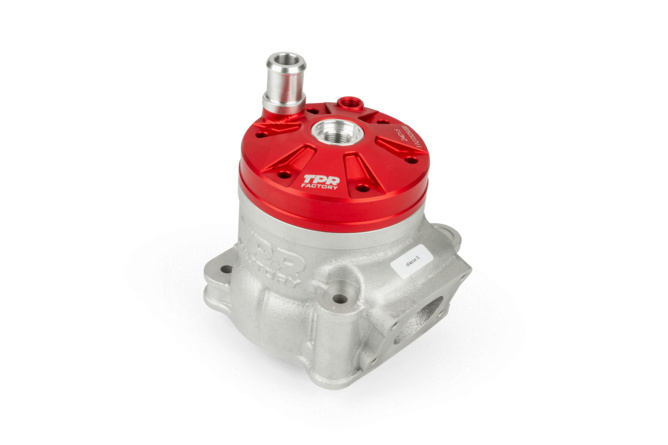

The modular cylinder head, featuring a bright red water jacket, ensures optimal heat dissipation, as expected from high-end race cylinders. Additionally, the special 4-point exhaust flange provides a secure and stable exhaust mounting solution.
Attention: Not approved for road use - race track only!
Advantages of flanged mount design
More and more manufacturers are now developing so-called flanged mount cylinders. Compared to standard cylinders with stud bolt mounting, these offer several advantages:
- FL cylinders are generally more stable and precisely mounted. The absence of stud bolts provides better protection against torsional forces, while the direct attachment of the cylinder head ensures a more accurate fit.

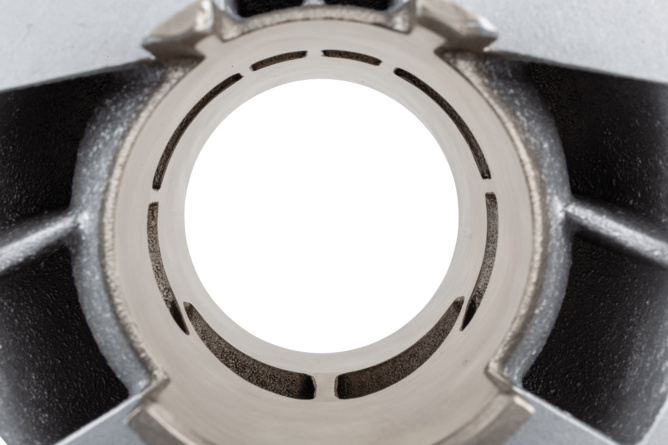

- For manufacturers, eliminating stud bolts creates additional space, allowing for greater optimization of the transfer port design, which is particularly beneficial for enhancing the exhaust port layout.
TPR 100cc cylinder - setup & installation
To use this high-end cylinder, you must either modify the original case or use the TPR Factory 100cc crankcase (flanged mount) specially developed for this cylinder. In addition, a TPR Factory crankshaft with 47 mm stroke and 98 mm connecting rod must be used.
To get maximum power from the kit, you should of course use a matching tuning exhaust and adjust the carburetor settings.
Also for AM6: TPR Factory 100cc cylinder with standard stud bolt mounting.
Technical details Top Performance 100cc cylinder AM6:

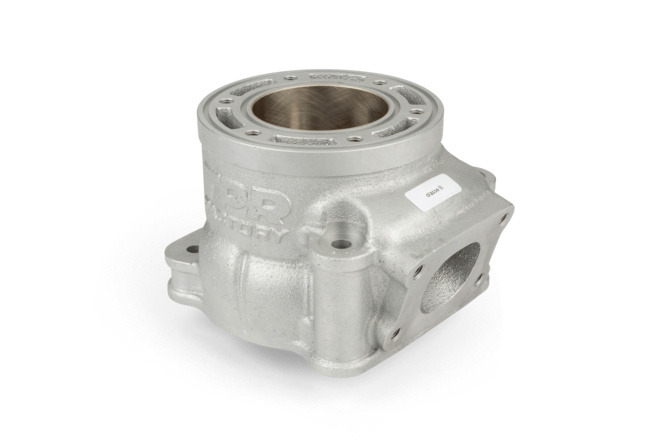

- Aluminum cylinder
- Displacement: 100cc
- Bore: 52 mm
- Stroke: 47 mm

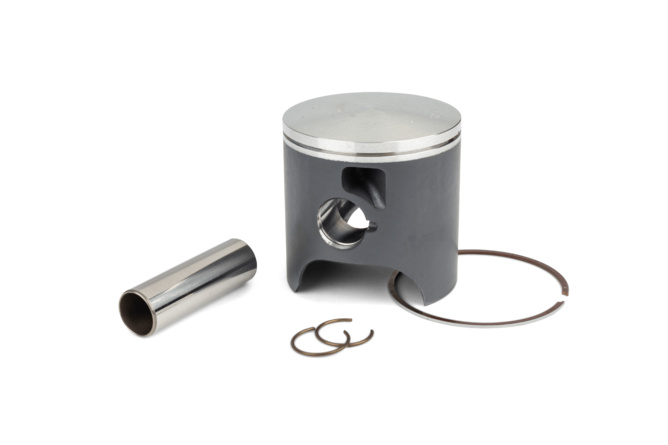

- 1-ring piston
- Modular cylinder head

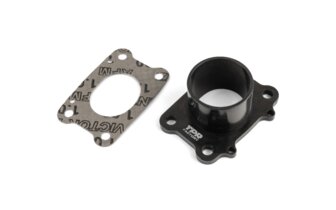

- Exhaust flange with screws

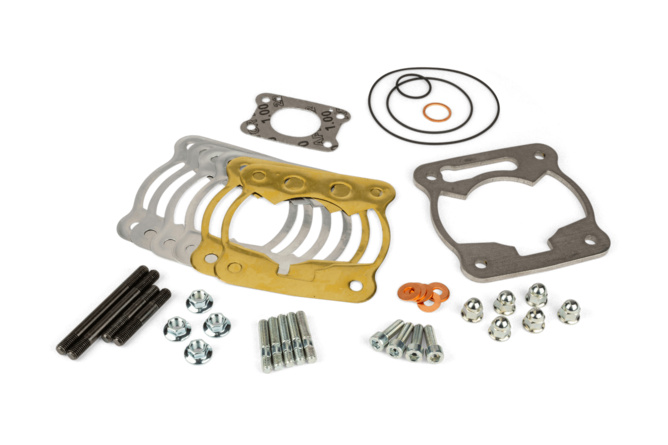

- Stud bolt set

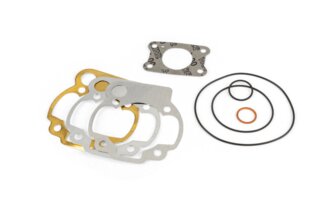

- Gasket set
TOP PERFORMANCE TPR Factory
The TPR Factory series from Top Performance includes the high-end products of the Italian tuning brand.
The TPR Factory tuning parts for 50cc scooters and 50cc motorcycles with high performance fall into the high-end racing category, e.g:
- CNC crankcases for scooters
- CNC gearbox cover for 50cc supermotards
- CNC transmission covers for scooters
- Racing clutch for 50cc supermotos
- 4-piston brake caliper
- Scooter exhaust
- Internal rotor ignition
The TPR Factory range is constantly being expanded to satisfy demanding riders and tuning fans looking for maximum quality and performance.
How to Install a cylinder on a scooter, motorcycle or moped
The cylinder or cylinder kit is the heart of the engine on scooters, motorcycles and mopeds. It consists of a cylinder, a piston with piston ring(s), a cylinder head and gaskets needed for installation.
The service life of a cylinder depends on whether it has been fitted correctly.
Tuning Level: High End racing
We categorize our products into different performance levels Original, Sport, Racing and High End , so that our customers can choose the right parts for their setup. It is really important to combine parts that belong to the same tuning level, this is especially true for cylinders, crankshafts and exhausts.
High End Racing products are exclusively designed for racing and should only be handled by tuning pros with the appropriate technical know-how. High-end racing parts often require modifications or machining of certain elements to accommodate the often larger components (larger crank webs, larger intake, etc.). Whether you stick with 50cc or increase the displacement, high-end racing parts offer much higher performance than the original parts and are the most powerful tuning parts.
Note: To ensure the reliability of the engine, it is important that the parts are compatible and that you do regular maintenance on your two-wheeler.
Aluminium cylinders
Aluminium cylinders are more powerful than cast iron cylinders, but require more regular maintenance and must be combined with different components such as a reinforced crankshaft and a larger carburetor.
How to run in an aluminium cylinder?
Aluminium cylinders should be run in for about 200 kilometers , and you should use a fully synthetic engine oil.
Note: To ensure optimum performance and reliability, it is advisable to measure the squish clearance. Just have a look at our tutorial How to adjust squish clearance.
| Cylinder Kit TPR Factory FL100 AM6 | |
|---|---|
| Article no. | T99GT52FAM0 |
| Weight | 1,93 kg |
| Series | TPR Factory |
| Brand | Top Performances |
| Product type | Cylinder kit |
| Tuning level | High-end |
| Displacement | 100cc |
| Piston pin | 14 mm |
| Cylinder material | Aluminium |
| Bore | 52 mm |
| Stroke | 47 mm |
| Conrod length | 98 mm |
| Spark plug thread | M14 long |
